EXACTE AND SIMPLE MEASURING OF YOUR EQUIPMENT.

FULL SET

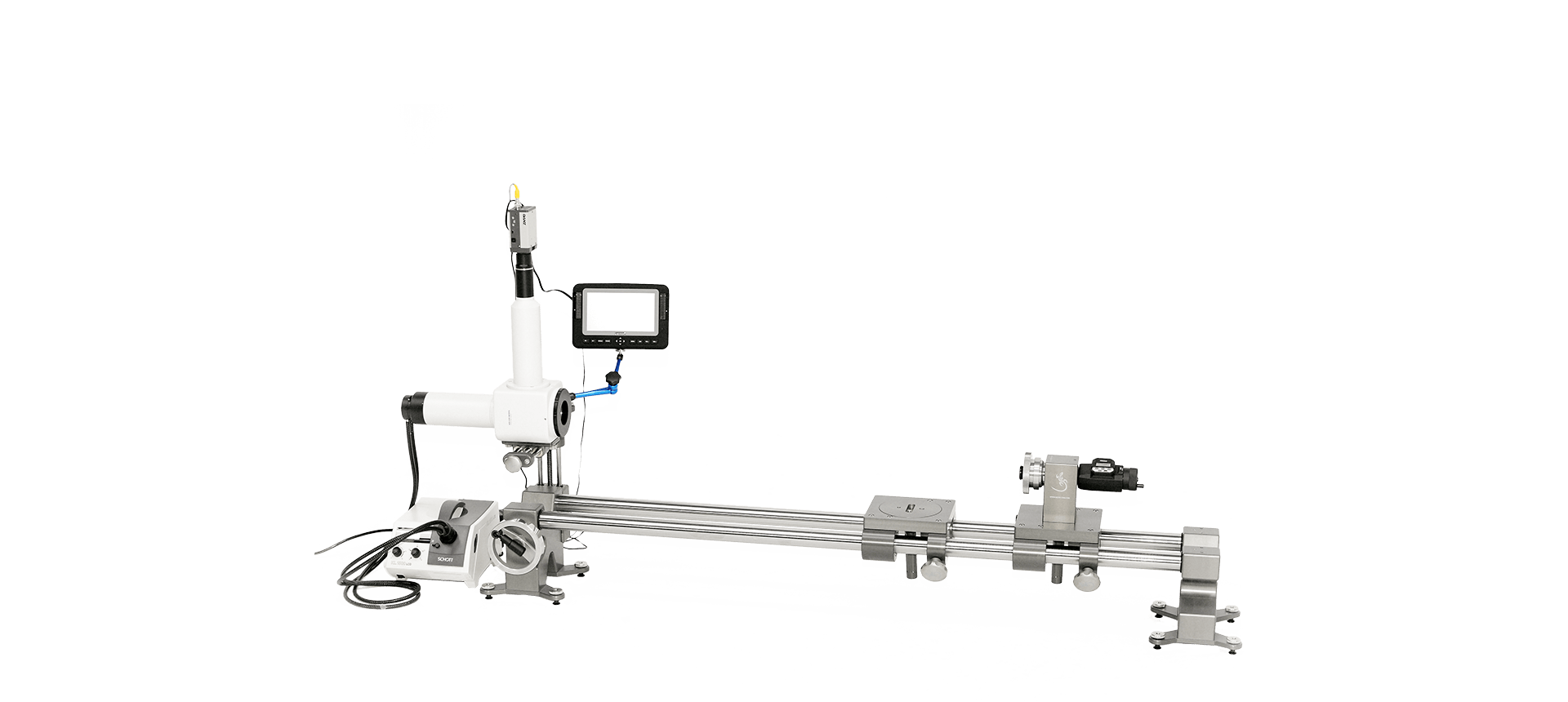

The Gecko-Cam Collimator bench is everywhere in practical use when it comes to testing camera equipment and lenses. This ideal measuring equipment is designed mainly for service and repair.

Equipped with the IMS Mount System it offers flexibilty and stable measurements. The Möller and Wedel Autocollimator is capable of measuring lenses within a range from 6mm up to 300mm Focal length.

EXACT MEASURING

SET FEATURES

  • UNIVERSAL CAMERA AND LENS TEST BENCH
    (new version) 1,40m working space , with two moveable tables for cameras up to 100kg, surface hardened finish (hard-coat ®), mounting block with digital micrometer (displays 0,001mm) and Gecko lens mount base or Interchangeable Mount System (IMS).

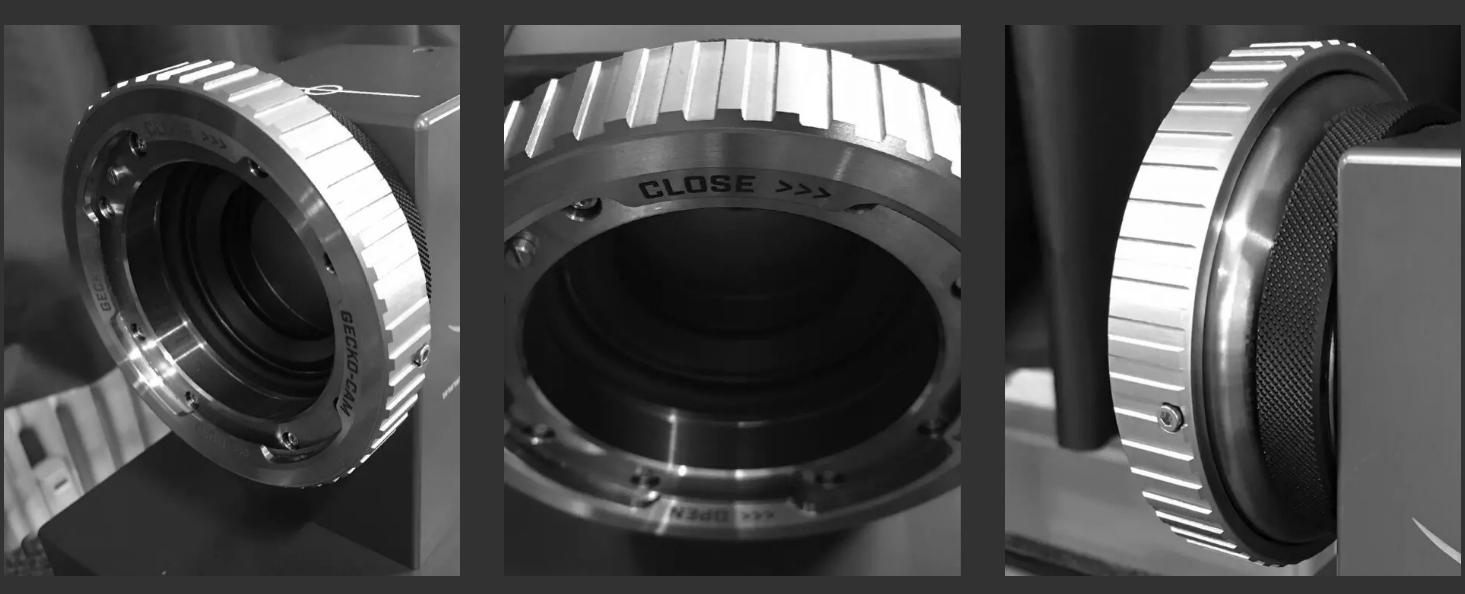

  • PL-MOUNT
  • MEASURING HEAD MARK III 45S
    (autocollimator), set to infinity, suitable for testing lenses with focal length from 6-300mm, quick release support, measuring head is adjustable in height and sidewise.
  • POWER SUPPLY, INCL. 15V/150W COLD LIGHT LAMP AND WITH LIGHT-CONDUCTIVE FIBRE.
  • CCD-CAMERA 1/3″ B/W PAL WITH POWER SUPPLY (NTSC VERSION ON REQUEST).
  • TFT-MONITOR PAL/NTSC INCL. POWER SUPPLY AND MINI MAGICARM.
  • PLAN PARALLEL GLAS

LPL MOUNT NOW AVAILABLE
