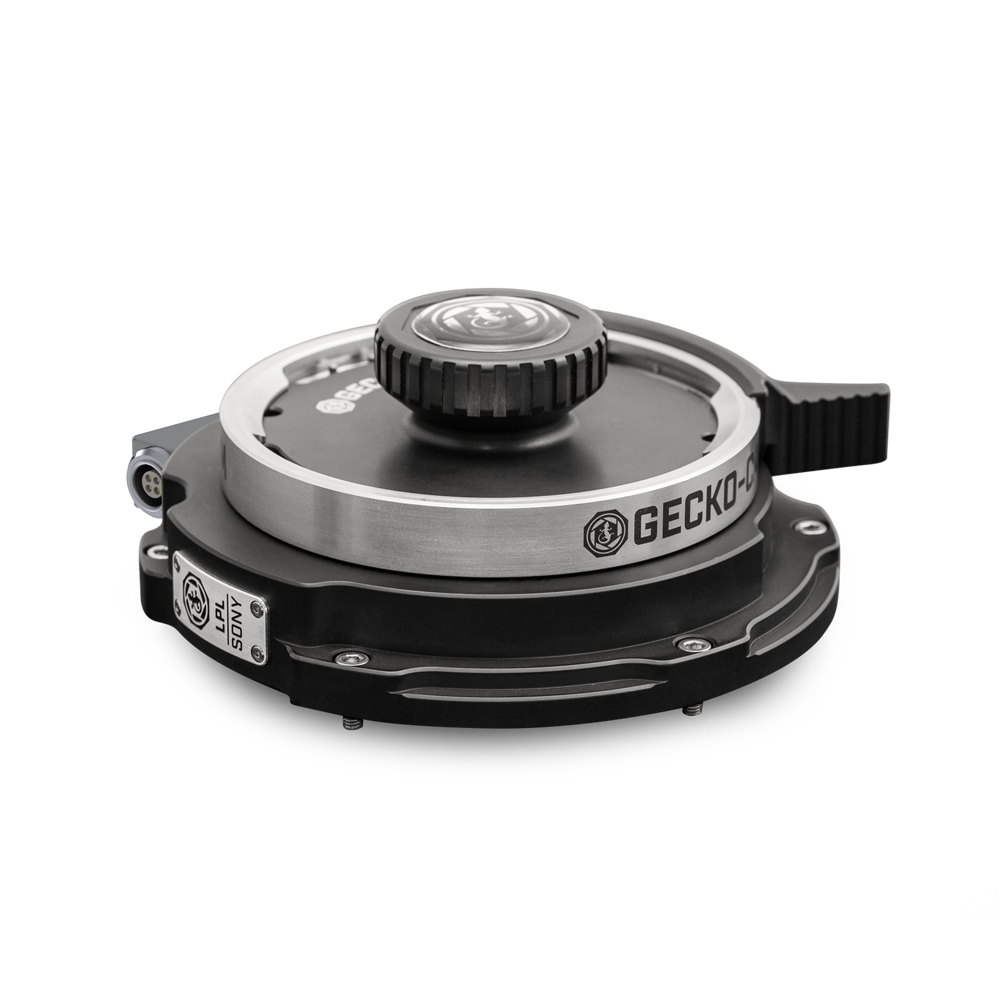

LPL MOUNT REPLACING THE ORIGINAL MOUNT OF YOUR SONY VENICE CAMERAS

Sony LPL-Mount with L-BUS connector

It enables for the use of native LPL Mount Lenses to be used on Sony Venice whilst connecting LDS lens data to be fed directly to the camera. Added L-BUS connector enables the communication with the DCS Lens Data Translator Module https://dcs.film/how-it-works/  to record Lens Meta Data. Made from 7075 Aircraft grade aluminium and Stainless Steel, to reduce the impact of pressure and temperature changes to a minimum, this high quality product comes with the precision we are known for. Factory adjusted within 0,005 mm tolerance in parallelity and depth you get the reliability needed for professional use in our industry.

Once attached to the Sony Venice Camera it it suggested to measure and calibrate the flange depth. The LPL-Mount can easily be adjusted by adding or removing color coded shims underneath the LPL-Flange wich is mounted with 6 TX8 screws.

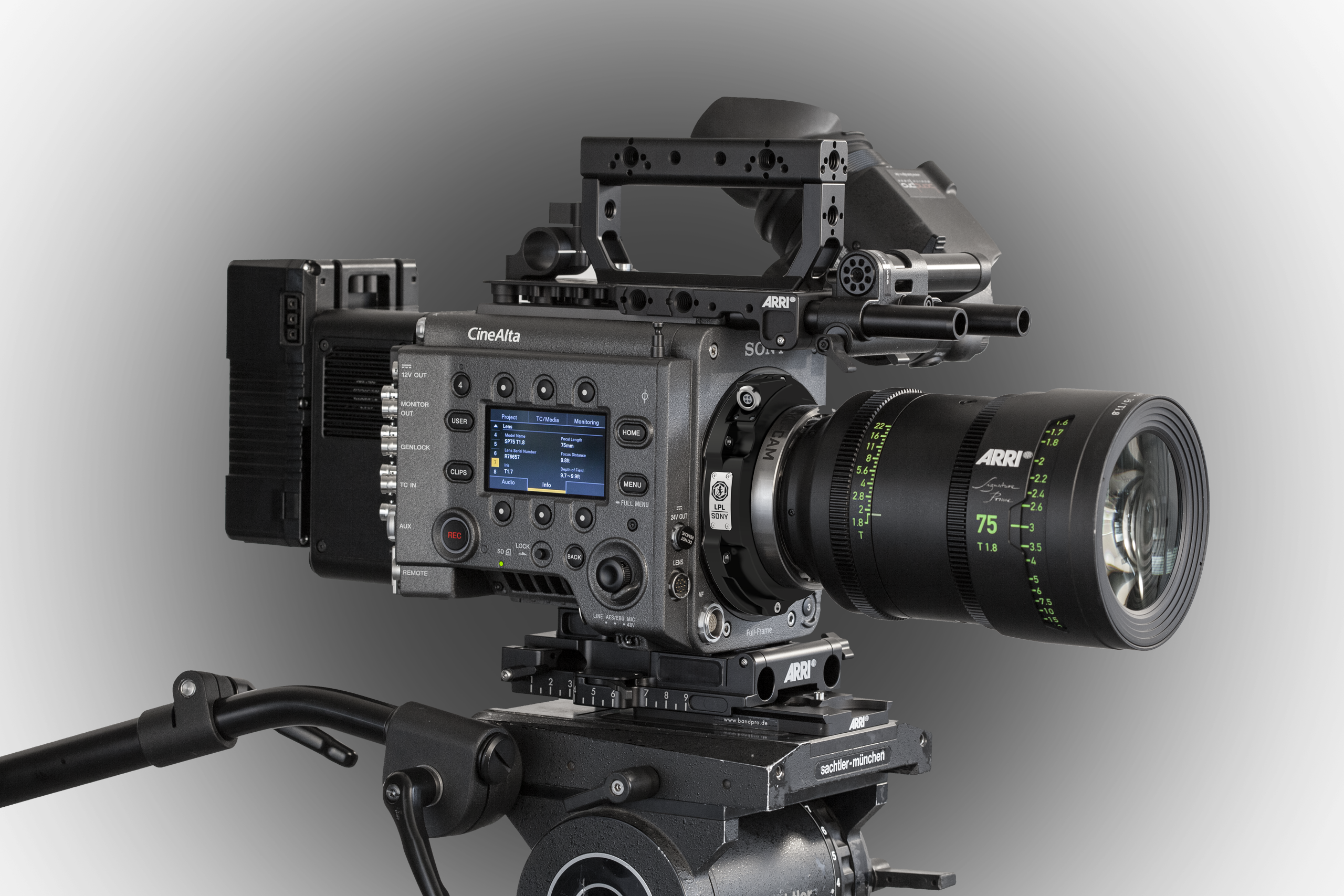

Used with the Gecko-Cam LPL-PL Adapter, which can be also ordered in a set, this device can remain mounted to your Sony Venice Camera to support the use PL Lenses without readjusting.

FEATURES

  • 7075 aircraft grade aluminium
  • Stainless Steel LPL-Flange
  • Stainless Steel Screws
  • Superior built quality
  • Precision adjustement within 5 microns
  • LPL-Lens DATA Connection
  • Easy handling and adjusting
  • L-Bus connector for communication with DCS- Lens Data Transformer

Improved for telecentric lenses
to eliminate vignetting

PLACEHOLDER-1-300x180-2
GEP.11010.0
LPL-MOUNT GECKO PRO for Sony Venice LDS Version with L-BUS connector
1,990.00

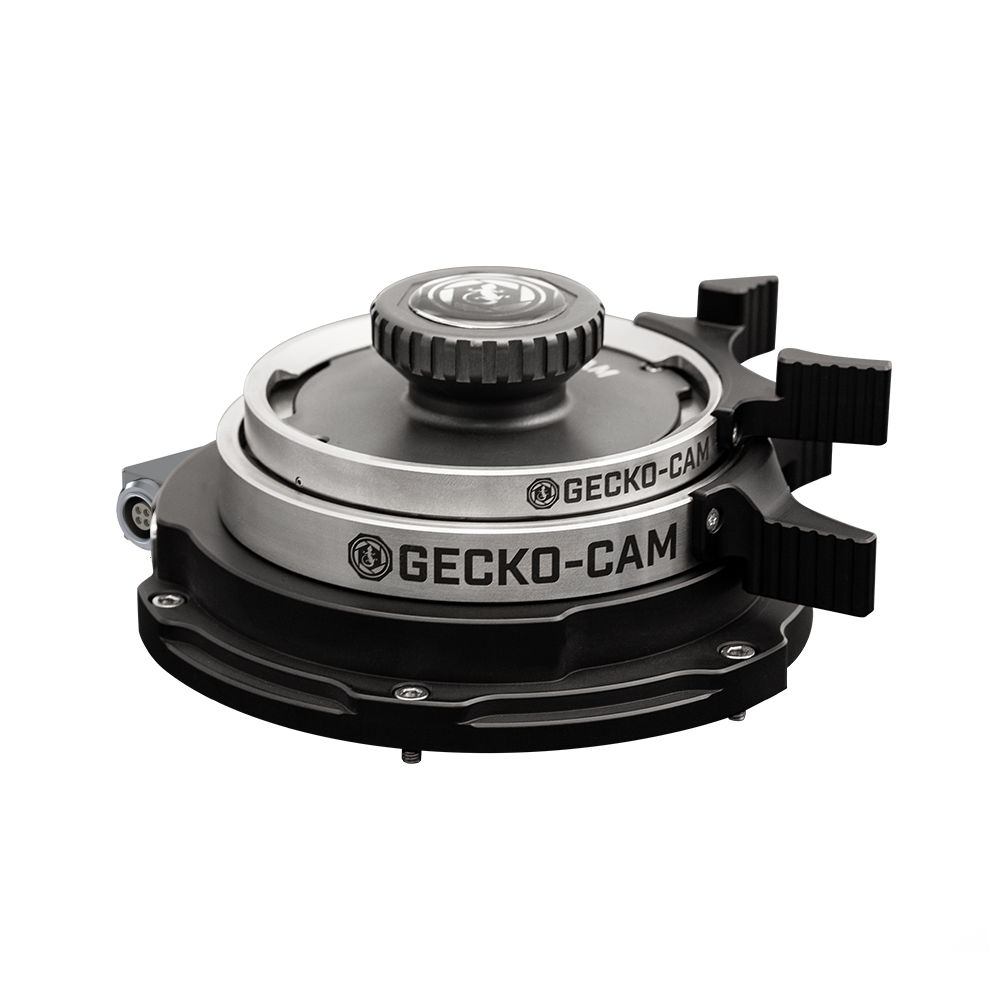

LPL-MOUNT with L-BUS
& LPL-PL ADAPTER SET
