READY FOR LARGE FORMATS
A newly designed condenser lens array
A newly designed condenser lens array now results in a substantial increase in light throughput (approx. 100% / double the throughput) and a larger image circle with 60mm diameter. This in turn allows for the use of larger reticles having a mechanical diameter of 80mm.
- The light source & lens array have been combined into a movable unit having 50 mm axial shift range. Allowing optimal positioning of the light cone to suit the format.
- Positioning of test screen (i.e. back focus)
- The indicator dial unit can be set to store and recall a desired reference position. In this way, the offset to a given ideal ange distance can be determined with an accuracy of 0.01mm.
- The intensity of the light source can also be controlled (i.e. dimmed) independently.
- Position of the reticle can be adjusted via remote control to +/- 1 mm. The position is easily readable via an integrated digital indicator dial.
- An optional accessory display can be placed for more comfortable operation when working with e.g. longer lenses.
PROTECT YOUR INVESTMENTS

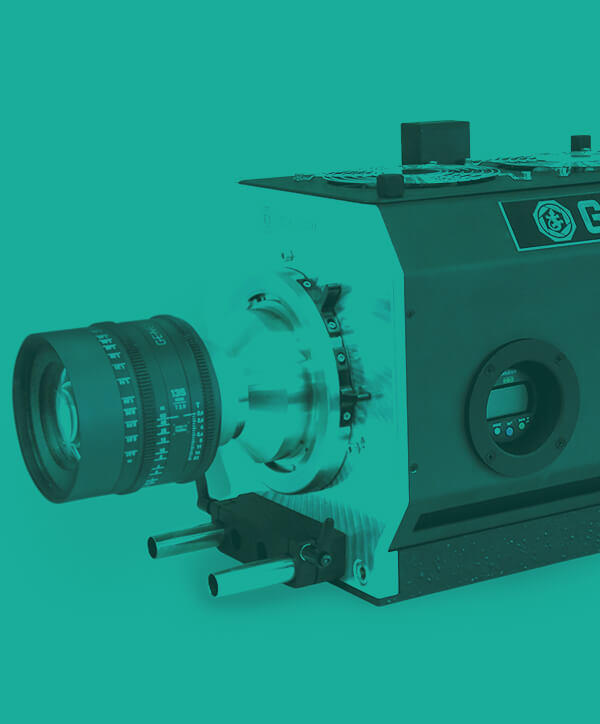

GECKO CAM LENS TEST PROJECTORS
Features
- 60 mm image circle
- Motorized back focus
- OMS-mount system
- Halogen light source
- Optional Wifi hand unit
- Optional LDS System for Cooke and Zeiss
- Adjustable light source and lens array
The Gecko Reticel supports every sensor format and sizes that are necessary to evaluate the optical performance of an objective.

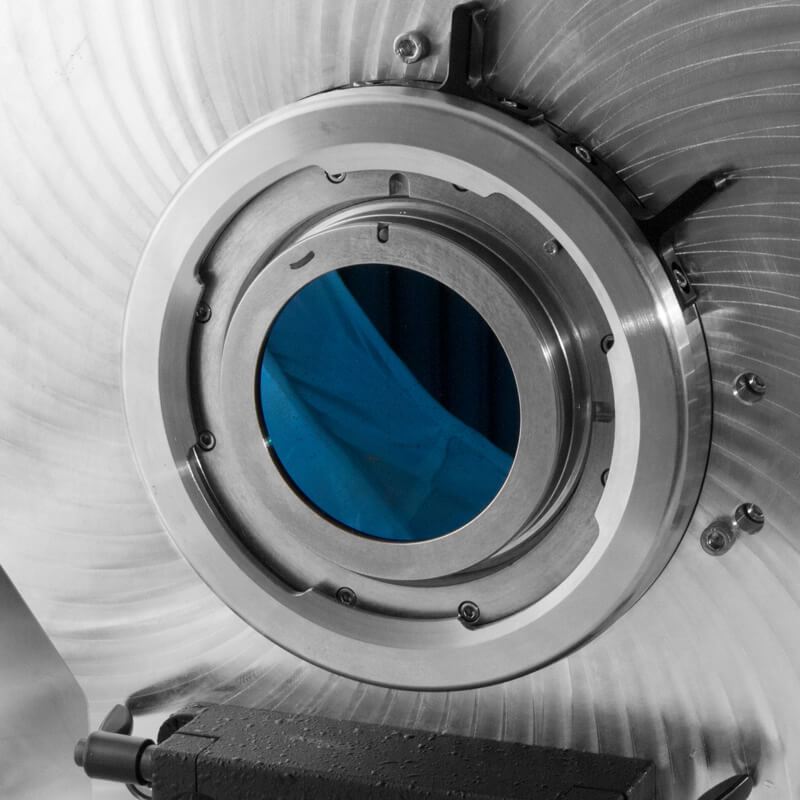

OMS MOUNT SYSTEM
Developed by Gecko-Cam the OMS Mount is used for measurement devices like the Zeiss K9 system.
All OMS Mounts and Reticle are precisely adjusted to achieve flatness and center alignment.

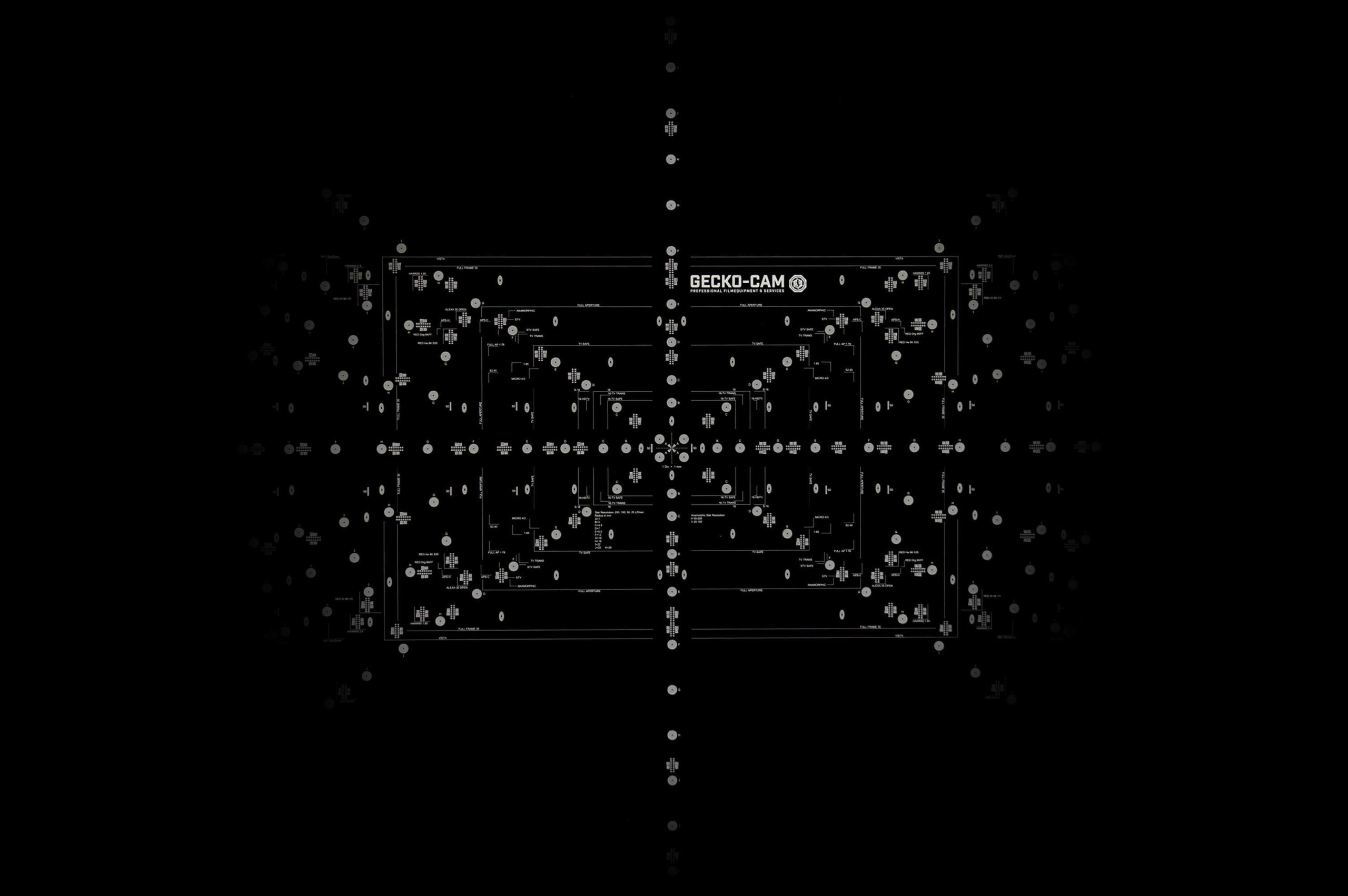

The Reticle has a diameter of 80 mm and features standard markings of all sensor formats available on the market.
GC.11700.0

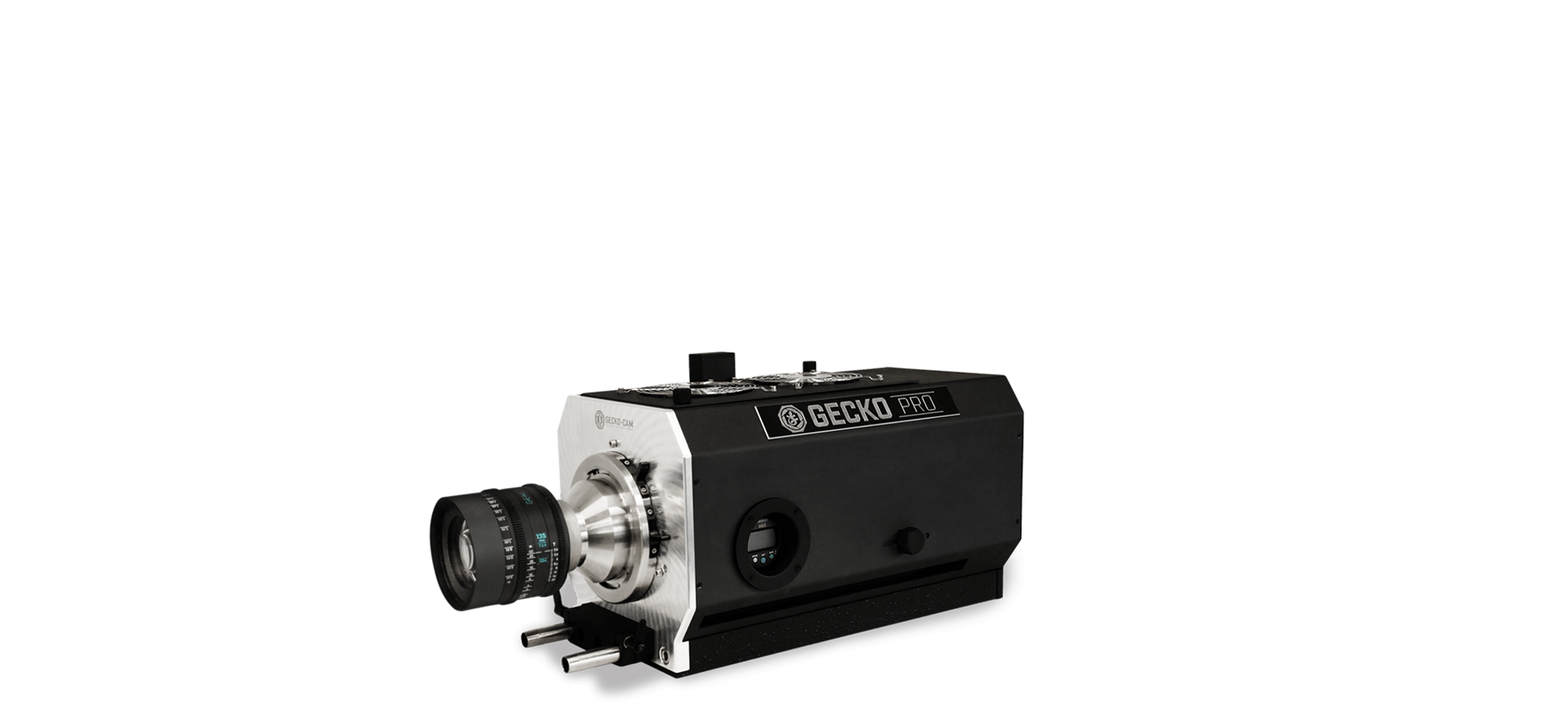

Lens test projector GECKO PRO (large format lenses) cpl. set
19800
