DEVELOPED & CONSTRUCTED IN GERMANY THE NEW MECHANIC IMPROVES YOUR WORK FLOW & QUALITY.

FUTURE – PROOF

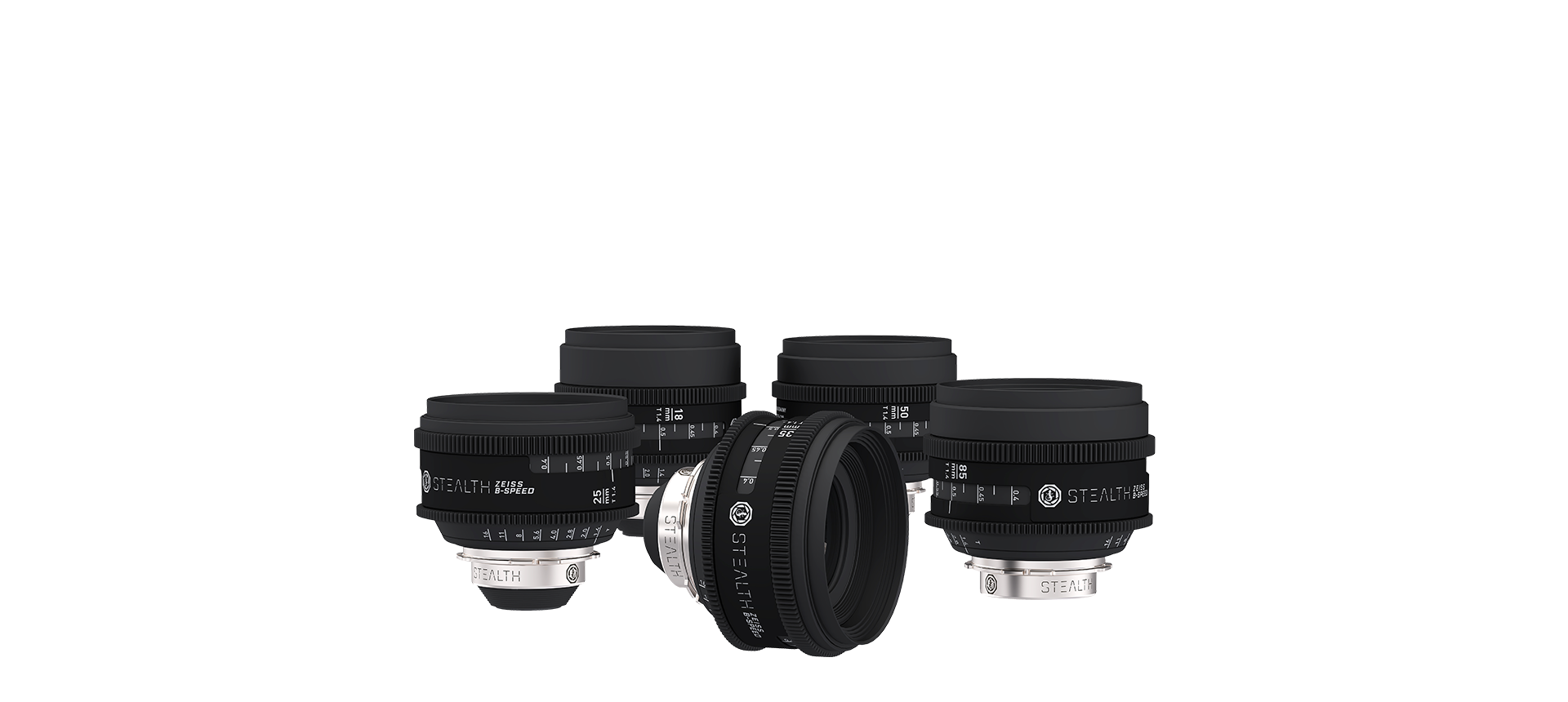

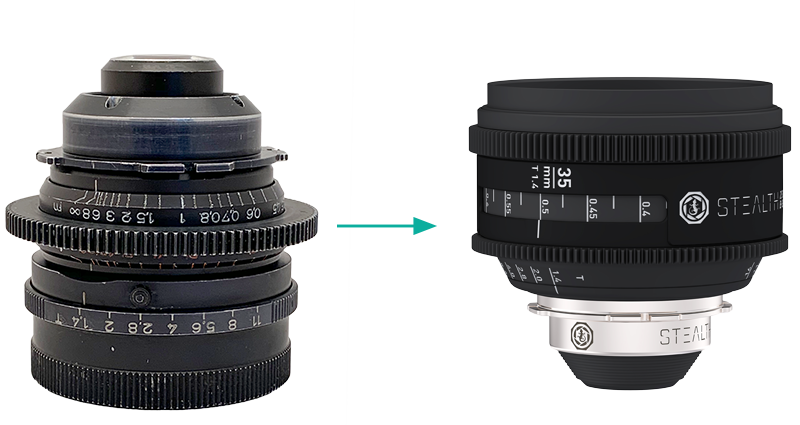

The first generation of the legendary Zeiss „Super Speed“ lenses was introduced in the 1970s under the name „B-Speeds“. The set consists of 18mm, 25mm, 35mm, 50mm and 85mm with a T stop of 1.4. One of the most distinctive characteristic about the „B-Speeds“ is their peculiar 9-blade iris that has an aperture in the shape of a triangle with rounded sides which offers impressive booked effects. The growing interest in vintage lenses makes them keeping up with the requirements of modern motion picture industry and we decided to delevop a robust and lightweight rehousing for the Zeiss B-Speeds.

FEATURES

  • Developed and constructed in Germany
  • Small and lightweight
  • Same front diameter – 95 mm
  • Gearrings at same position
  • Cam follower system
  • Front hardmounted with lens mount
  • Interchangeable mounts & focus scales
  • Precise CNC-engraving
  • Focus range 270 degrees
  • Prepared for Gecko-Motor Bracket
  • Improved for optical service
PLACEHOLDER-1-300x180-2

SPECS

Zeiss B Speed 18mm 25mm 35mm 50mm 85mm
Mount PL PL PL PL PL
T-Stop T1.3 T1.3 T1.3 T1.3 T1.3
CFD M 0,26 0,25 0,33 0,37 0,7
CFD 10″ 10″ 13″ 15″ 23″
Focus Range 270° 270° 270° 270° 270°
Front Diameter 95mm 95mm 95mm 95mm 95mm
Weight 1445g 1055g 990g 9550g 1080g
