Flange focal distance measuring set

Description

The most precise and reliable way to measure your flange!

As this tool is probably the most important in everyday use we´re paying special attention to production and assembly. Every part of the gauge, the cylinder and the plan plate are sanded and lapped after the machining process we can provide tolerances within 0,001mm. Also the chosen material has the smallest amount of temperature expansion as possible.

So we´re able to provide our customers the most reliable adjustement tool possible to calibrate their measurement equipment.

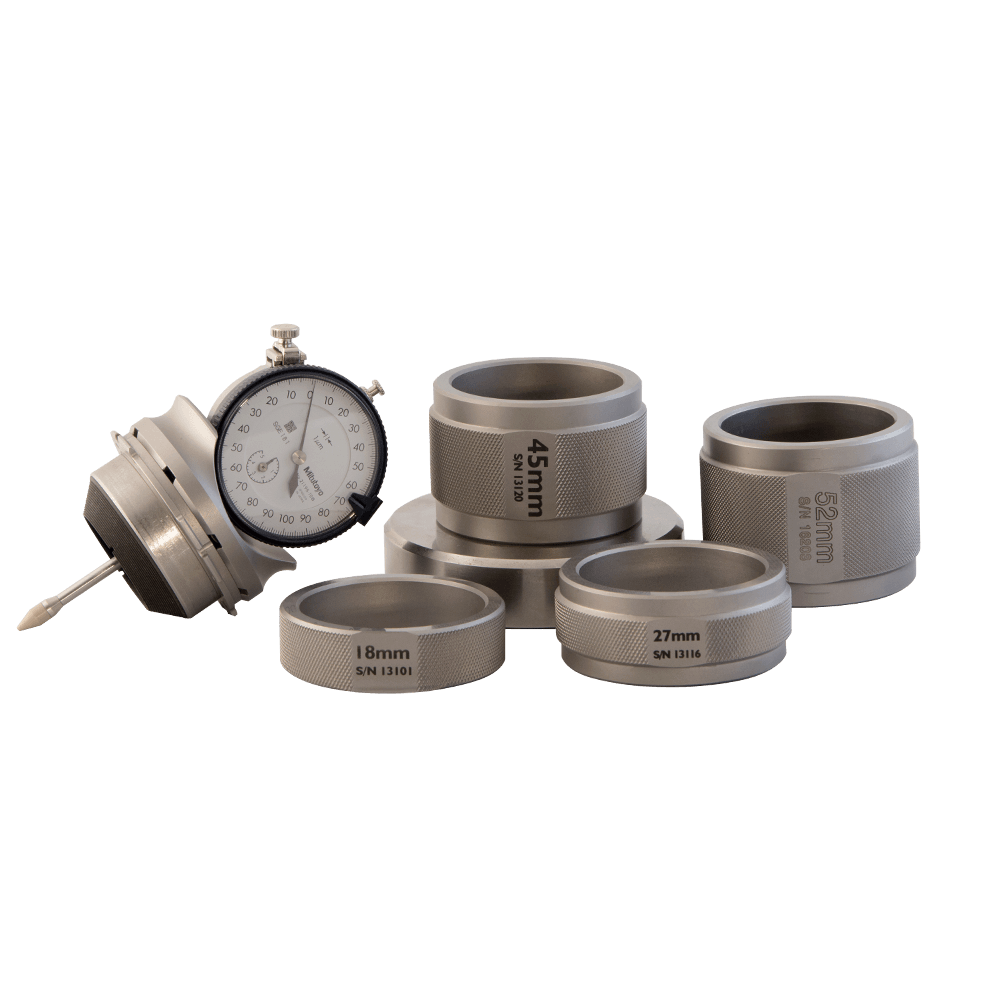

Included

  • ground plate
  • gauge ring
  • dial gauge 0,001mm with plastic tip
GC.11199.0
Flange focal distance measuring set 52mm | PL-Mount
1495,00.- €
GC.10245.0
Flange focal distance measuring set 45mm | Canon / Nikon / Leica R
1495,00.- €
GC.10243.0
Flange focal distance measuring set 27mm | Leica M
1495,00.- €
GC.10241.0
Flange focal distance measuring set 18mm | MFT / E- and X-Mount
1495,00.- €
GC.10247.0
Flange focal distance measuring set | Panavision Mount
1695,00.- €
GC.10246.0
Flange focal distance measuring set 44mm | LPL Mount
1695,00.- €
GC.11198.K
Flange focal distance measuring set 52mm ground plate, gauge ring 52mm, dial gauge 0,01mm with flange | mickey mouse set
on request
